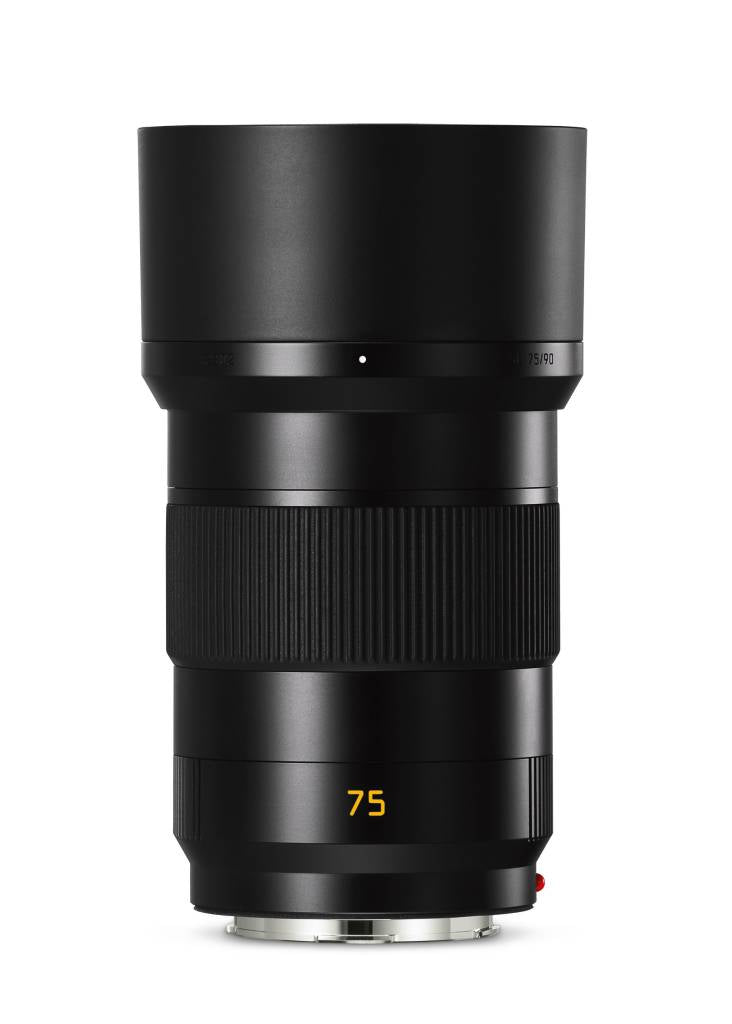

APO-SUMMICRON-SL 75 f/2 ASPH.

SKU: 11178
Sale price£4,400.00 GBP
Usually Ships within 10 Days
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
34kg
shipping emissions removed
That's like...
85
miles driven by an average gasoline-powered car
We fund innovations in...
Direct Air Capture
Bio Oil
Mineralization

Street, portrait, or whatever catches your eye: Conceived as a universal lens for all situations, the APO-Summicron-SL 75 f/2 ASPH. opens up new horizons for photography in the transitional zone between standard and telephoto focal lengths. It is perfectly matched to the modern SL-System and has been conceived for a long working life under professional shooting conditions. In addition to this, the maximum achievable reproduction ratio of 1:5 contributes even more to the versatility of the lens.

AF System with Dual Syncro Drive™
From zero to sharp in no time

The AF system of the Summicron-SL lenses is fast, precise, and almost silent. They thank their outstanding AF performance figures to the autofocus drive unit they share. These are limited only by the mass of the lens elements moved when focusing, the travel from infinity to the closest focusing distance and, of course, the amount of space available. In order to preserve the compact dimensions of the lenses, the integration of these components must follow an integral approach.

Specialists from the areas of optical and mechanical engineering and electronics worked together in an interdisciplinary team on the development of a unique lens concept based on double internal focusing. This system, comprising two particularly light focusing lenses, allows the construction of particularly small and compact drive systems. In addition to space limitations, the choice of the drive motors is also determined by the AF principle used for focusing.

Several contrast measurements at various focusing positions must be made before the correct direction of motion for focusing can be determined and followed by precise focusing. In this procedure, the focusing lenses must be moved rapidly backwards and forwards in accordance with the speed specifications of the contrast AF system. This requires a dynamic drive system without any play.

In the Summicron-SL lenses, the drive units installed are extremely powerful and robust stepping motors with Dual Syncro Drive™. Thanks to these, the entire focusing throw can be traveled completely in fractions of a second. This means that the Summicron-SL lenses achieve values that are among the best in the full-frame system segment in terms of speed, precision, and noise emissions.

Higher Contrast
for greater perceived depth

With an initial aperture of f/2, the SL-Summicron lenses are significantly more compact than faster lenses, but still allow photographers to work with similar depth of field. The reason for this is contrast: the zone of highest contrast is perceived by viewers as being sharp, while zones with lower contrast are regarded as being unsharp.

In the case of SL-Summicron lenses, this difference in contrast is considerably higher than that of conventional lenses: sharply focused objects show much higher contrast than objects that are out of focus. This means that objects “snap” more distinctly out of the foreground or background and more effectively isolate the subject. This creates a three-dimensional visual effect with very impressive apparent depth.

Optically and Mechanically
a new standard

In the construction of the Summicron-SL lenses, particular attention has been paid to the prevention of stray light and reflections. The optimization of the optical and mechanical design was carried out in elaborate simulations before the construction of the first prototype lenses. Unavoidable reflections are reduced to the best possible level by high-quality coating of lens surfaces.

Complex Electronics
for uncomplicated handling

The three most obvious functions of a Summicron-SL lens to users – focusing, MF ring, and aperture setting – are all based on a multitude of control systems and mathematical operations. The demands on the electronics are particularly high in the case of the double focusing system. Here, the two autonomous focusing units must be moved in perfect synchronization and positioning data have to be analyzed at a very high sampling rate and passed on to the camera.

The transfer rate between the lens and the camera is so high that there is no perceptible delay. These are the primary preconditions for fast and precise contrast AF.

A ring magnet with alternating north-south magnetization is embedded in the manual focusing ring. The magnetic field changes its polarity when the ring is turned. A sensor monitors the status of the magnetic field and sends the data to the main processor. The drive then shifts the lens to the corresponding focusing position on the basis of the angle of rotation and the rotational speed.

The iris is driven by a stepping motor. Here, a special micro-step control system ensures precise and fast movements with minimized vibration.

Impressive
down to the smallest detail

The consistently compact dimensions, low weight, and the excellent grip and feel of the SL-Summicron lenses are particularly impressive when shooting. Thanks to the almost identical design of the Summicron-SL lenses, feeling for the MF ring is unnecessary after switching lenses and the center of gravity remains largely the same. This means that the camera always lies perfectly in the hand and makes working from a tripod much easier.
